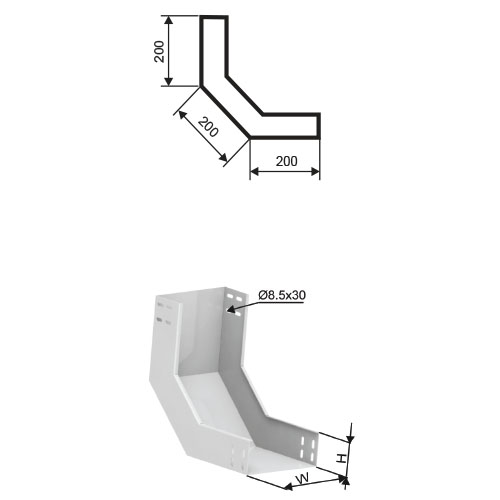

Inside Vertical Bends 90˚ (Fixed Wide Angle) H100

Order CodeStock CodeH mmW mmWeight (kg/mt)
710-10A PG01004AA71010APG1001002,050
712-10A PG01004AA71210APG1001202,260
715-10A PG01004AA71510APG1001502,375
716-10A PG01004AA71610APG1001602,455
720-10A PG01004AA72010APG1002002,745
722-10A PG01004AA72210APG1002252,920
725-10A PG01004AA72510APG1002503,090
730-10A PG01004AA73010APG1003003,435
740-10A PG01004AA74010APG1004005,500
745-10A PG01004AA74510APG1004506,190
750-10A PG01004AA75010APG1005006,420
760-10A PG01004AA76010APG1006007,340
710-10A HDG01004AA71010AHDG1001002,255
712-10A HDG01004AA71210AHDG1001202,410
715-10A HDG01004AA71510AHDG1001502,615
716-10A HDG01004AA71610AHDG1001602,700
720-10A HDG01004AA72010AHDG1002003,020
722-10A HDG01004AA72210AHDG1002253,210
725-10A HDG01004AA72510AHDG1002503,395
730-10A HDG01004AA73010AHDG1003003,775
740-10A HDG01004AA74010AHDG1004006,050
745-10A HDG01004AA74510AHDG1004506,810
750-10A HDG01004AA75010AHDG1005007,065
760-10A HDG01004AA76010AHDG1006008,075

DESCRIPTIONS:

1- “A and B” sizes are equal in standard production if required

“B Sizes” can be changed by using reducing parts

2- Please visit page 109 for other radius

3- Different sheet thicknesses can be produced.

4- Please indicate order code and the shape of coating in your orders.

INFORMATION:

L: Length

T: Thickness

W: Width

PG: Pregalvanized

HDG: Hot Dip Galvanized

Material Thickness and Weight Tolerans: ± 10
